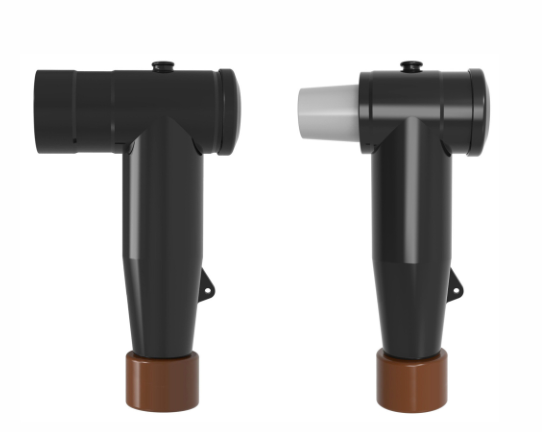

YTJC10-XX 10kV European plug type three-phase AC voltage sensor
YTJC10-XX 10kV European-style plug-in type three-phase AC voltage sensor, based on capacitive voltage division + isolation structure, assembled on a standard European-style plug-in, small in size, light in weight, and easy to install. It is suitable for the measurement of the three-phase voltage and zero-sequence voltage of the power line in the ring net box (cabinet).
咨询热线:
YTJC10-XX 10kV European plug type three-phase AC voltage sensor
1. Product overview
YTJC10-XX 10kV European-style plug-in type three-phase AC voltage sensor, based on capacitive voltage division + isolation structure, assembled on a standard European-style plug-in, small in size, light in weight, and easy to install. It is suitable for the measurement of the three-phase voltage and zero-sequence voltage of the power line in the ring net box (cabinet).
2. Features
● Capacitive voltage divider + isolation structure, high precision, good linearity, wide frequency band, small size, light weight, low power consumption
● There is no ferromagnetic saturation and ferromagnetic resonance, no risk of explosion
● Primary and secondary isolation, safe and reliable
● Low output voltage, no risk of secondary short circuit and large current
● Wide temperature range (-40℃～70℃)
● High insulation resistance (≥1000MΩ), does not affect line maintenance
● There is no interface layering problem, safe and reliable
● Strong load capacity (1MΩ), the cable length can reach 10 meters
● The casing is semi-conductive and grounded, with strong anti-interference ability
● Three-in-one cable output signal, easy wiring
3. Implementation and Reference Standards
3.1. T/CES 018-2018 Specifications for 10kV and 20kV AC Sensors in Distribution Networks
3.2. GB/T 20840.7-2007 Transformers Part 7: Electronic Voltage Transformers
3.3.IEC-60044-7 electronic voltage transformer
4. Basic parameters
Rated primary voltage: 10000/√3 V
Rated secondary voltage: 3.25/√3 V
Rated secondary zero sequence voltage: 6.5/3 V
Accuracy level: 0.5/3P
Rated voltage factor: 1.2 (continuous), 1.9 (8h)
Rated load: 1MΩ
Partial discharge level: ≤10pC (14.4kV)
Power frequency withstand voltage: 42kV (1min)
Lightning impulse withstand voltage: 75kV/85kV
Working environment: -40℃～70℃
5. Structural parameters

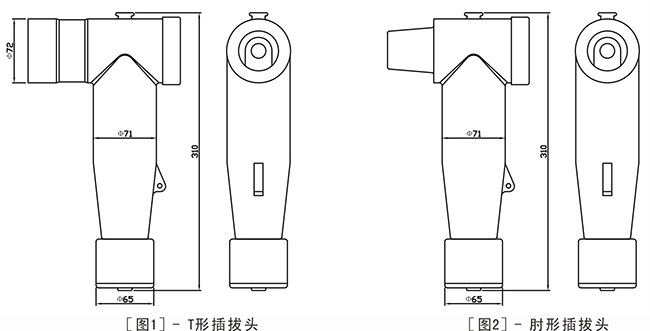

5.1. The external and structural dimensions (single-phase) of the T-shaped plug-in AC voltage sensor are shown in Figure 1, and the external and structural dimensions (single-phase) of the elbow-shaped plug-in AC voltage sensor are shown in Figure 2

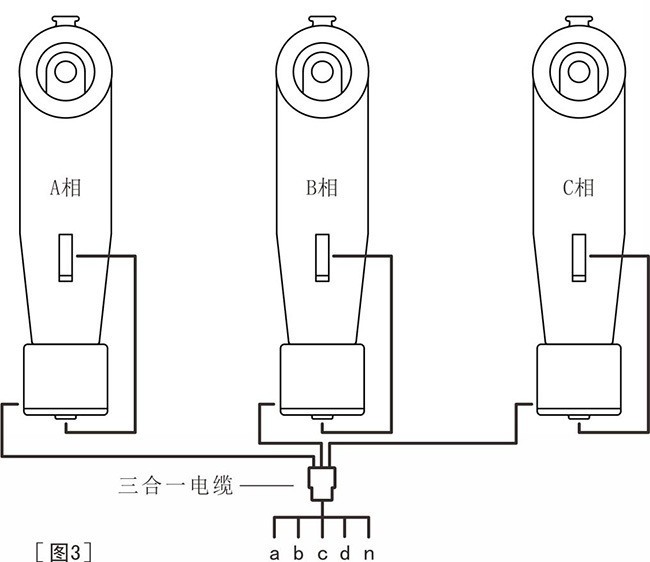

5.2. The schematic diagram of wiring is shown in Figure 3

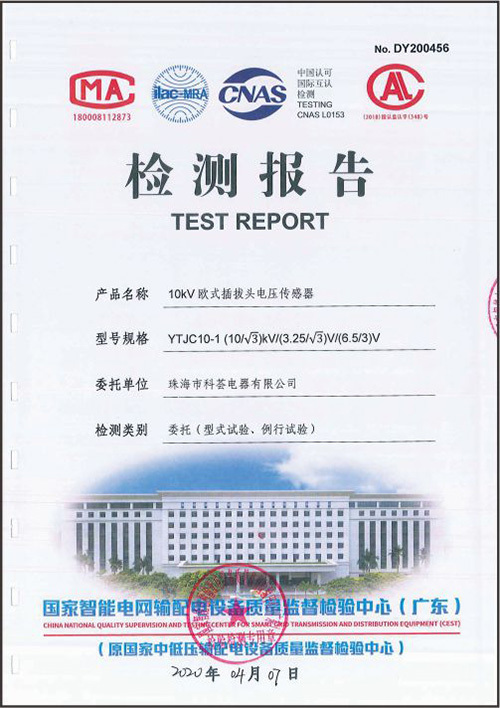

5.3. Test report
