YTJNW10-32 10kV outdoor zero sequence voltage sensor

咨询热线:

1. Product overview

YTJNW10-32 10kV outdoor zero-sequence voltage sensor is a 10kV three-phase AC voltage sensor with a capacitive voltage divider structure, which can be used to measure the three-phase voltage and zero-sequence voltage of ZW32 outdoor pole-mounted switches

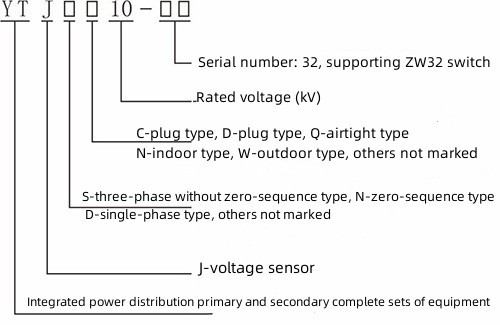

Product naming rules:

2 . Features

This product is different from the traditional electromagnetic AC transformer. It adopts a capacitive voltage divider structure and has the characteristics of high precision, good linearity, wide frequency band, small size, light weight, high reliability, and high ground impedance (≥1000MΩ). It is widely used in the measurement of three-phase voltage and zero-sequence voltage in ZW32 outdoor pole-mounted switch for primary and secondary fusion of distribution network.

3. Implementation and Reference Standards

3.1. T/CES 018-2018 Specifications for 10kV and 20kV AC Sensors in Distribution Networks

3.2. GB/T 20840.7-2007 Transformers Part 7: Electronic Voltage Transformers

3.3.IEC-60044-7 electronic voltage transformer

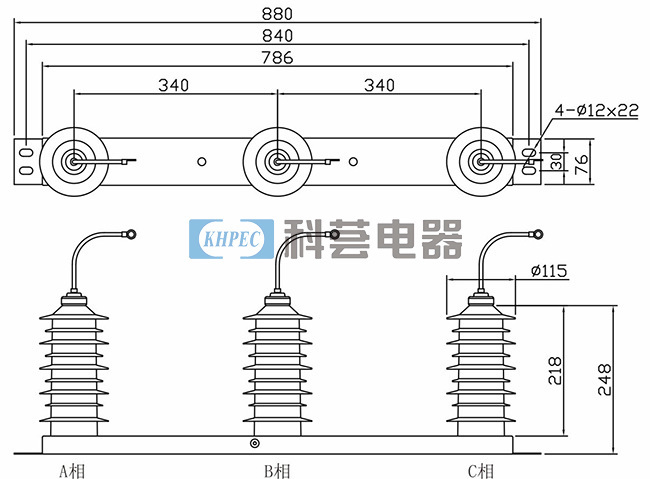

4. Basic parameters

Rated primary voltage: 10000/√3 V

Rated secondary zero sequence voltage: 6.5/3 V

Accuracy level: 1/3P

Rated voltage factor: 1.2 (continuous), 1.9 (8h)

Rated load: 5MΩ

Power frequency withstand voltage: 42kV (1min)

Partial discharge level: ≤10pC (14.4kV)
