YTLQ10-XX 10Kv airtight three-phase AC current sensor

YTLQ10-XX series current sensors detect current based on LPCT principle, three-phase integrated structure, epoxy resin casting, fully enclosed insulation, safe and reliable, suitable for common box outdoor pole-mounted circuit breakers with good anti-condensation performance (ZW20) Or outdoor pole-mounted load switch (FZW28

咨询热线:

13823033221

1. Introduction:

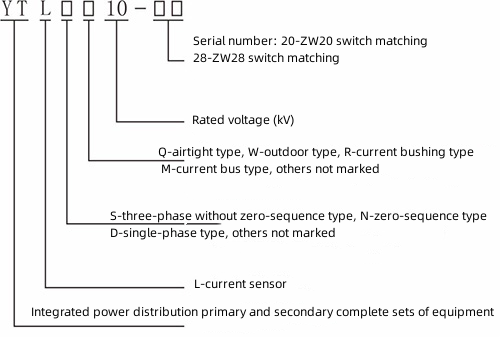

Product naming rules:

2. Product Features:

YTLQ10-XX series current sensors are based on the principle of low-power coils. Compared with traditional transformers, they have the following advantages:
1. Integrates 3 phase current and 1 zero-sequence current sensors, small in size, light in weight, easy to install and use
2,. The secondary output is a safe low-voltage signal, without the risk of secondary open-circuit high voltage, increasing safety
3. The power consumption is greatly reduced and the heat generation is small
4. Standardized products, simplified selection and ordering process, and fast delivery

3. Implementation and Reference Standards
3.1. T/CES 018-2018 Specifications for 10kV and 20kV AC Sensors in Distribution Networks

3.2. GB/T 20840.8-2007 Transformers Part 8: Electronic current transformers

3.3.IEC-60044-8 electronic current transformer

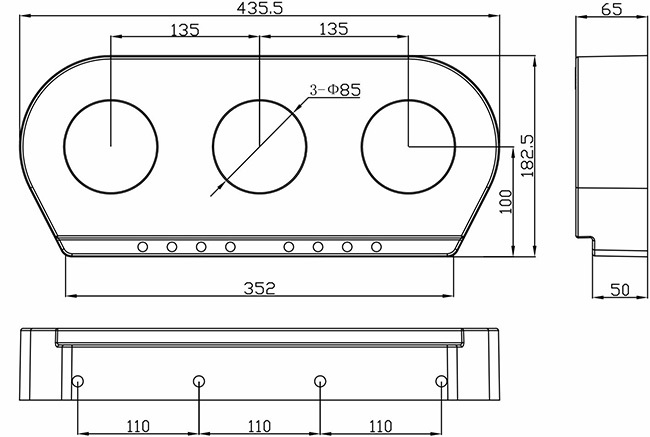

4. Basic parameters
Temperature range: -40℃～+70℃

Rated primary current: phase sequence 600A, zero sequence 20A

Rated secondary voltage: phase sequence 1V, zero sequence 0.2V

Basic accuracy: phase sequence: 0.5S/5P10, zero sequence: 1S/10P10

Comprehensive impedance: 20kΩ

Rated continuous thermal current: 720A

Short-time thermal current: 25kA/4s

Dynamic current: 63kA

Secondary terminal ground withstand voltage: 3kV (1min)
