10 KV plug type three-phase AC voltage sensor

YTJD10-XX plug-type three-phase AC voltage sensor is based on capacitive voltage division + isolation structure detection voltage, assembled at the plug position of the European-style plug head of the ring network cabinet, with small size, light weight, high precision, good linearity, easy installation Convenient and other advantages, suitabl

咨询热线:

13823033221

1. Introduction:

2. Product Features:

1. It adopts capacitive voltage divider + isolation structure, high precision, good linearity, small size, light weight, low power consumption, and ground impedance greater than 1000MQ.
2. -40C~+70C meets the requirements of class 0.5. There is no interface layering problem, safe and reliable. There is no ferromagnetic saturation and resonance,
3. There is no risk of explosion, shielding measures are taken, and the anti-interference ability is strong.
4. Isolation PT is used for isolation between primary and secondary, which is safe and reliable, and the load capacity is improved at the same time.
5. The output voltage is low, and there is no risk of secondary short circuit and large current
6. Installed at the plug position of the European plug-in plug, easy to install and does not take up space.

3. Implementation and Reference Standards
3.1. T/CES 018-2018 Specifications for 10kV and 20kV AC Sensors in Distribution Networks

3.2. GB/T 20840.7-2007 Transformers Part 7: Electronic Voltage Transformers

3.3.IEC-60044-7 electronic voltage transformer

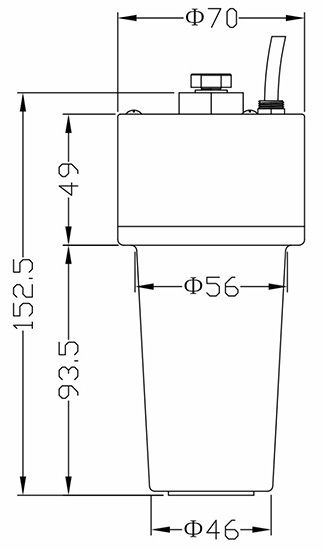

4. Basic parameters
Rated primary voltage: 10000/√3 V

Rated secondary voltage: 3.25/√3 V

Rated secondary zero-sequence voltage (three-phase): 6.5/3 V

Accuracy class: 0.5/3P (phase), 1/3P (zero)

Rated voltage factor: 1.2 (continuous), 1.9 (8h)

Rated load: 1MΩ

Partial discharge level: ≤10pC (14.4kV)

Power frequency withstand voltage: 42kV (1min)

Lightning impulse withstand voltage: 75kV/85kV
